SYSTEM B
SYSTEM B

System B
Audience size from 25-1500

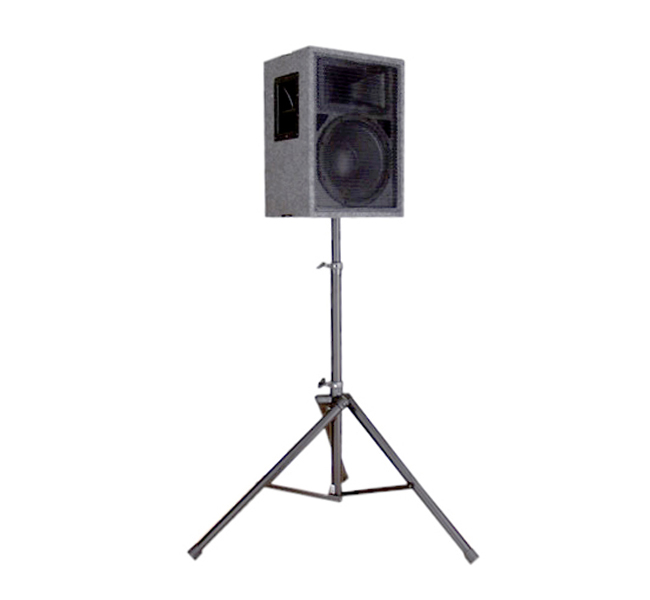

• System includes two custom-made speaker cabinets. Speakers can either be put on the ground, a table, stage, etc… or mounted on the included tri-pod stands
• 100% Portable Professional Audio and Video system
• Built in CD, MP3, and CASS (option Karaoke avail)
• Plug and Play- simply place cabinets in desired location, lock casters, and hook up one AC cable and two Speaker cables! It’s that simple
• Simple operation for non-experienced or first time operators
• Stores easily in any closet, equipment room, or class room
• Custom built with only the most reliable, dependable and professional brand name gear in the industry. NO consumer components
• System includes all necessary cables for operation
• Standard system includes one wireless and two handheld microphone with stands and booms

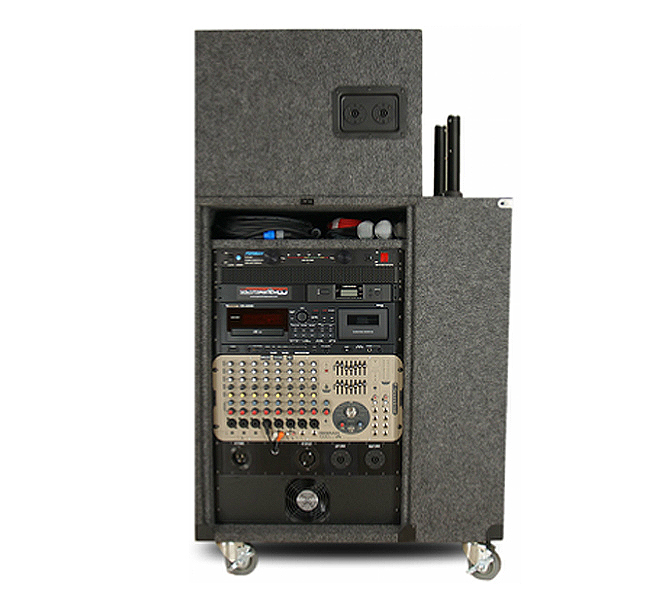

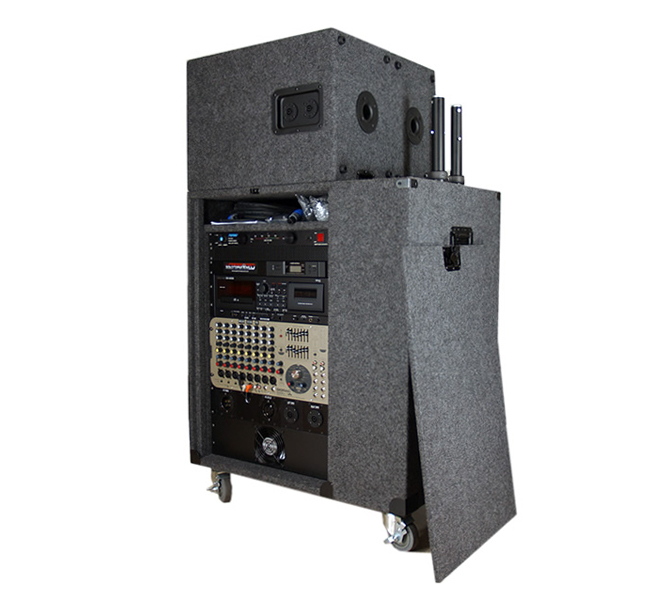

Standard configuration equipment rack includes:

• One professional 1000 watt powered 8 channel mixing board with built in effects and EQ
• One professional rack mounted combo CD/CASS player with pitch control and MP3 read
• One professional rack mounted UHF wireless microphone with selectable user channels
• One professional rack mounted power supply/conditioner with two pull out work lights(perfect for operating equipment in dark environments)
• One ultra quiet cooling fan to keep equipment cool even in the most demanding hot weather conditions
• One Ultrasound Audio custom patch panel for easy cable connections (1 AC inlet, 2 Speakon speaker outputs, 1 RCA type video output)
• Locking 3” ball bearing casters for easy mobility and secure placement
• Two recessed handles
• Protective black metal corners
• Custom carrying slot for speaker and mic stands

Ultrasound custom speaker cabinets include the following (components listed for each):

• One high-powered 12” professional loud speaker
• One 3” High/Mid compression driver
• One 70 x 50 horn with 1” throat for consistent even audio coverage
• One high-power cross-over specially engineered to give you the most natural ound and highest output
• Custom speaker grill which protects not only the woofer but the horn as well
• Two sets of Speakon speaker connection for easy connection and daisy chaining of extra speaker cabinets(available separately)

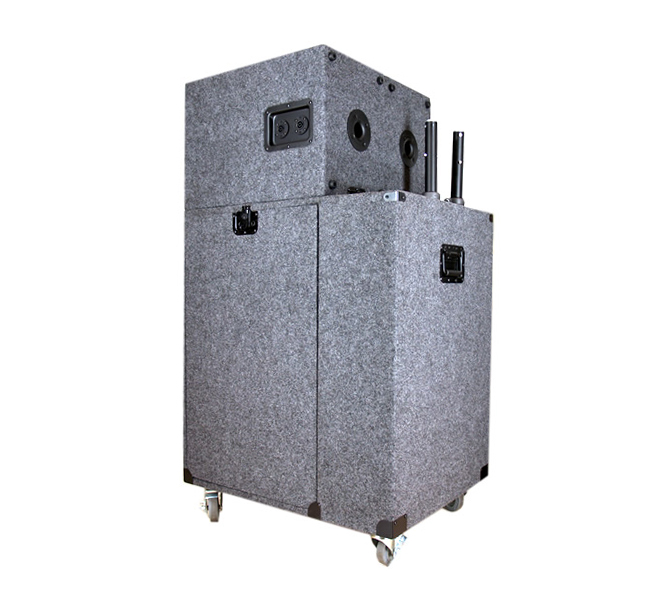

• Speaker cabinets lock on top of equipment rack for easy transport when not in use.
• Pad-lockable latches for maximum security and keeping unauthorized users out
• Available in black or grey carpet
• Custom school logo silk screening available on speaker grills
• Easily add an extra wireless mic, CD recorder, AM/FM tuner, DVD player, sets of speaker cabinets, or anything you can think of – just ask at the time of order
• 3 Year warranty on electronic components
