Stadium System
Stadium System

Stadium System
Audience sizes from 6000+

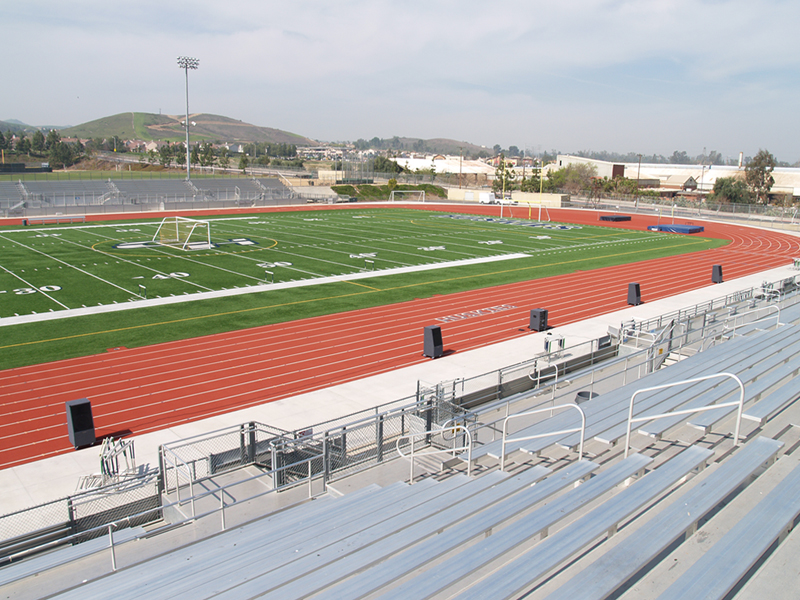

• Projection angle pre-set for stadium or bleachers
• System includes 4 speaker cabinets with preset projection angles and one Audio/Video rack
• 100% Portable Professional Audio and Video system - Built in DVD, CD, MP3, and I-pod connection with charging port (optional Karaoke players available)
• Plug and Play- simply place cabinets in desired location, lock casters, and hook up one AC cable and two Speaker cables! It’s that simple
• Simple operation for non-experienced or first time operators
• Stores easily in any closet, equipment room, or class room
• Custom built with only the most reliable, dependable and professional brand name gear in the industry. No consumer components
• System includes all necessary cables for operation
• Standard system includes two handheld wireless microphones and two handheld wired microphones with stands and booms
• Pre wired for quick and easy setup
• Indoor or outdoor
• Low center of gravity
• 100% self contrained
• No lifting required

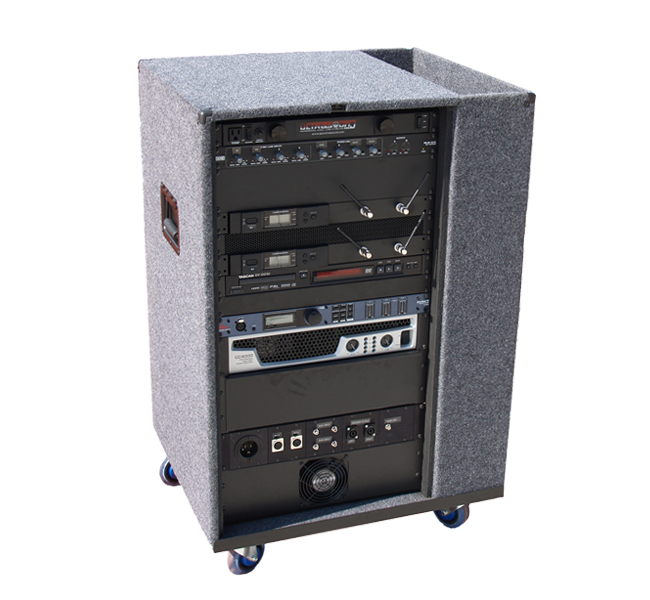

Standard configuration equipment rack includes:

• One two-channel 4000 watt professional power amplifier
• One all-in one professional system controller (EQ, Limiter, and Cross-over) Pre-programmed and locked out at time of order to ensure NO BLOWN SPEAKERS and maximum clarity and natural sound in any environment
• One professional rack mounted DVD player with Progressive scan and HDMI output
• Two professional rack mounted UHF wireless microphones with 1000 selectable user channels
• One professional rack mounted power supply/conditioner with two pull out work lights (perfect for operating equipment in dark environments)
• Two ultra quiet cooling fans to keep equipment cool even in the most demanding hot weather conditions
• One Ultrasound Audio custom patch panel for easy cable connections (1 AC inlet, 2 Speakon speaker outputs, 2 XLR hardwire microphones inputs, 1 BNC type video output, 1 HDMI video output, 1 USB charging port, and 2 stereo RCA type AUXILARY inputs for IPOD, PC, etc)
• One professional rack mounted MIC/Line mixer with four microphone inputs and four stereo line inputs. (Pull-out mini PA mixer available upon request)
• 3 space Rack Drawer for storage of Microphones, Cables, etc
• Locking 3” ball bearing casters for easy mobility and secure placement
• Two recessed handles
• Protective black metal corners

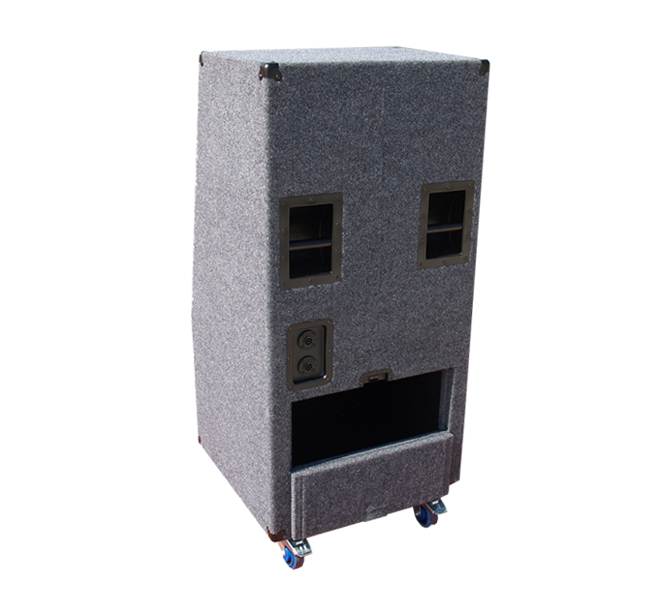

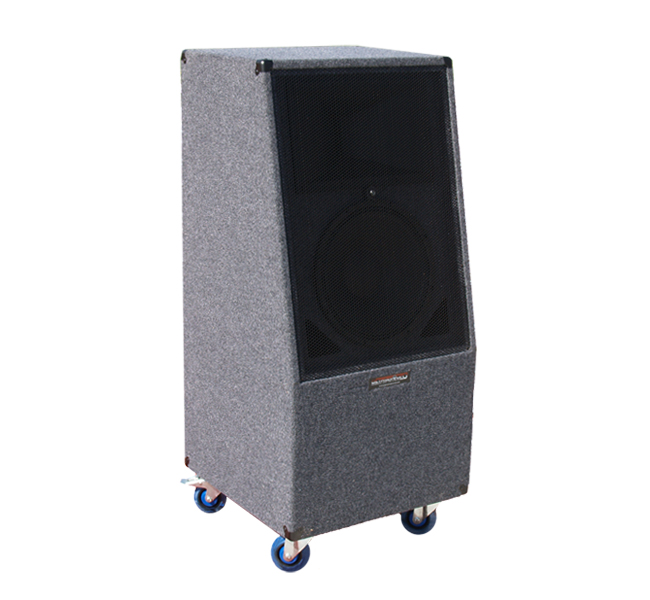

All custom speaker cabinets include the following:

• One high-powered 15” professional load speaker
• One 4” High/Mid compression driver
• One 90 x 60 horn with 2” throat for consistent even coverage of output
• One high-power cross-over specially engineered to give you the most natural sound and highest output
• Custom speaker grill which protects not only the woofer but the horn as well
• Two sets of Speakon speaker connection for easy connection and daisy chaining of extra cabinets (available separately)
• Each cabinet has storage compartment for wires and cables
• 4” ball bearing locking casters
• Pad-lockable latches for maximum security and keeping unauthorized users out
• Available in black or grey carpet
• Custom school logo silk screening available on speaker grills
• Easily add an extra wireless mic, CD recorder, AM/FM tuner, sets of speaker cabinets, or anything you can think of, just ask at the time of order
• 3 Year warranty on electronic components
