FREEDOM
FREEDOM

Freedom

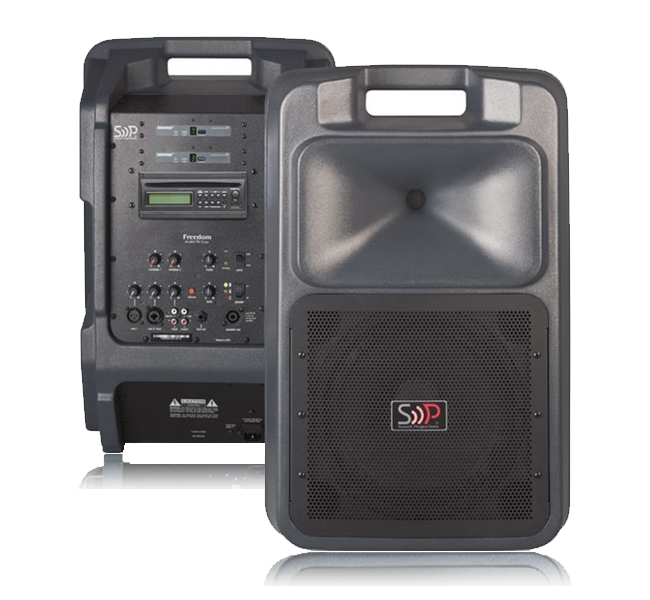

Portable Sound System with Talkover

• The features you need at a price you can afford.

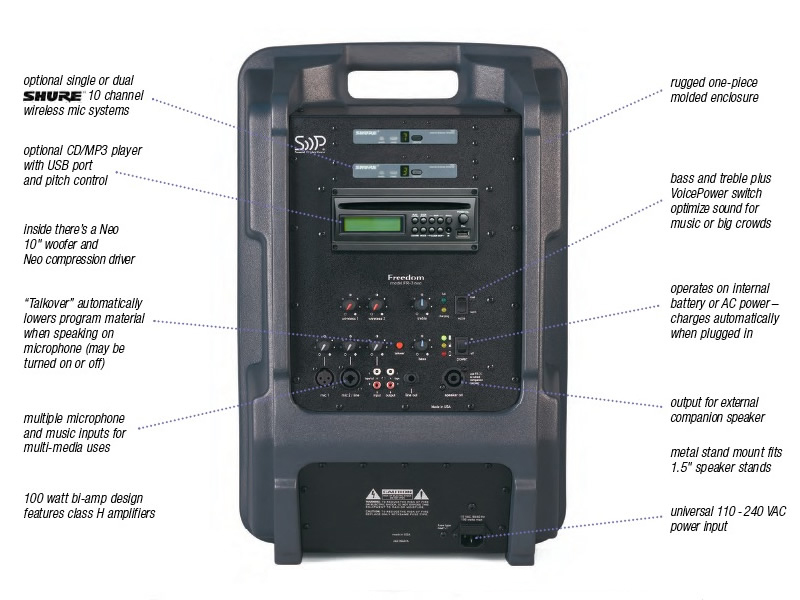

• Clear and powerful sound thanks to a dual amplifier configuration driving a Neodymium 10" woofer and titanium-dome compression driver.
• Light-weight – basic system weighs just 32 pounds.
• Optional CD/MP3 player with port for USB memory key and up to two 10 channel wireless microphones.
• Exclusive ‘talkover’ feature automatically lowers program material when speaking on microphone, ideal for short announcements and multi-media presentations.
• With 100 watts total dynamic power, it’s just right for groups of 100 people to crowds of 2,000 or more.
• Use it anywhere – operates up to a full day on the built-in battery,or plug it in for true AC operation.
• Six year warranty on system, 2 years on battery.

Portable Sound System with Talkover:

Models:

FR-3neo Battery/AC-powered sound system with output for companion (FR-3C) FR-3C Companion Speaker for Freedom.

Options: (factory installed)

OPT-100 Built-in CD/MP3 player with port for USB memory key.
OPT-22FA Shure 10 channel UHF wireless handheld microphone system.
OPT-33FA Shure 10 channel UHF wireless body-pack system (used with wireless mics below).
OPT-HB1 Heavy Duty Battery - increases operating time 50%.

Accessories:

SC55-4W 50 foot 4-wire speaker cable.
MC-4W Mating coupler, 4 pole (use to join speaker cables).
MIC-HH1 Handheld Microphone (wired) with 30 foot cable and connectors.
PSC-SM Protective slip cover with storage pocket.
SS-2 Basic speaker stand.
TB-1 Tote bag for speaker stand.
SPort-1 Sound-Porter convertible transport system.
Microphones for use with body-pack systems (use with OPT-33FA)
MIC-L4 Lapel microphone for body-pack transmitter.
MIC-HB4 Headset microphone for body-pack transmitter.
MIC-CM2 Collar microphone for body-pack transmitter.

Specifications

Rated power output
... 100 watts

Max SPL
... 123 dB ‘loud’ mode
... 115 dB ‘normal’ mode

Frequency response
... 70 Hz - 15 kHz

Wireless system
... Shure 10 channel, 3 group
... UHF true diversity

Battery life
... 4-8 hours typical

Power requirements
... 110-240VAC, 50-60hz
... 120 watts max

Dimensions (HWD)
... 23 x 15 x 13"

Weight
... 33 lbs (36 lbs with OPT-HB1)
Talkover microphone
... wireless mic 1 (wired mic 1 if no wireless installed)
Inputs
... (2) mic level, balanced, XLR
... (1) line level, 1/4” phone
... (1) tape/CD level, dual RCA

Outputs
... (1) line level, 1/4” phone
... (1) tape/CD level, dual
... (1) speaker output
